Transceiver | QSFP+

본문

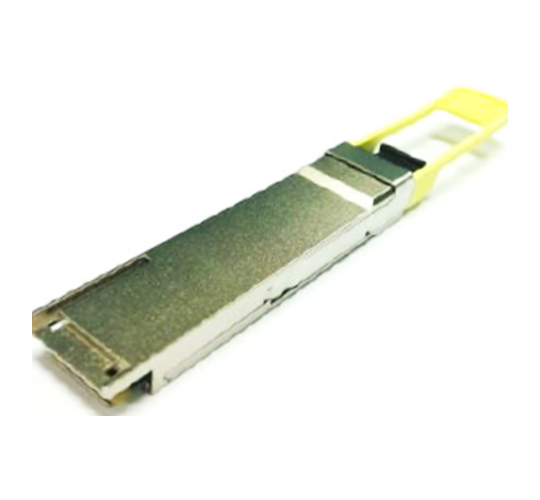

Product Name	QSFP+
Description	"QSFP+ is a new Multi-Source Agreement (MSA) for high speed application, such as 40G-BASE, which provide four channels of data in one pluggable interface. Each channel is capable of transferring data at 10Gbps and supports a total of 40Gbps. The 40Gbps
Feature	•Compliant with QSFP+ MSA (SFF-8436) •Up to 11.2 Gbps data rate per channel •MPO optical connector (IEC61754-7-1) •Low power consumption 2 W (max.) •Operating case temperature (0°C~70°C) •Transmission length up to 1.4 km •Transmitter with 4 channel 1310nm DFB laser •Receiver with 4 channel PIN photo detector
